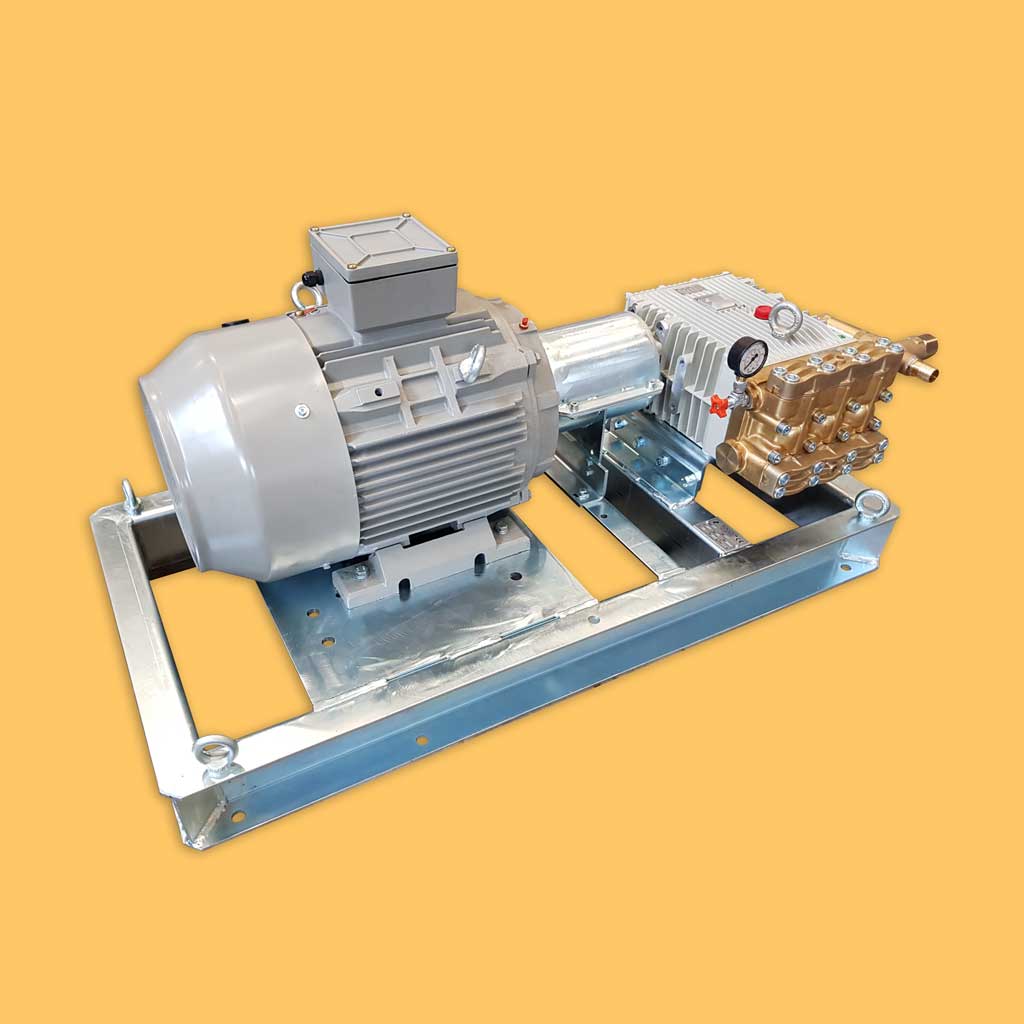

Lifting system for water supply 80/100BP

  • Metallic stainless steel skid or hot dip galvanizing treatment
  • Flow 90 l/min at 1500 rpm
  • Max pressure 100 bar
  • Power 25 HP (18.5 kW)
  • 3-piston ceramic pump with brass head Elastic star coupling with adjustable mechanical protection Safety bypass valve and pressure regulation
  • Electric motor 4P 25HP B3H160 IP 55 IE3 of Italian production
  • Max. temperature suction water: 30°C Y filter 1″ 1/4 inlet
  • Pressure gauge FS250 glycol bath bar with shut-off tap
  • Plant overall size 125x80x60cm
  • Weight 300 kg
